MINIATURE TT BRAIDED PATCH CORDS
264
PATCH CORDS & MOLDED CABLE ASSEMBLIES
?
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

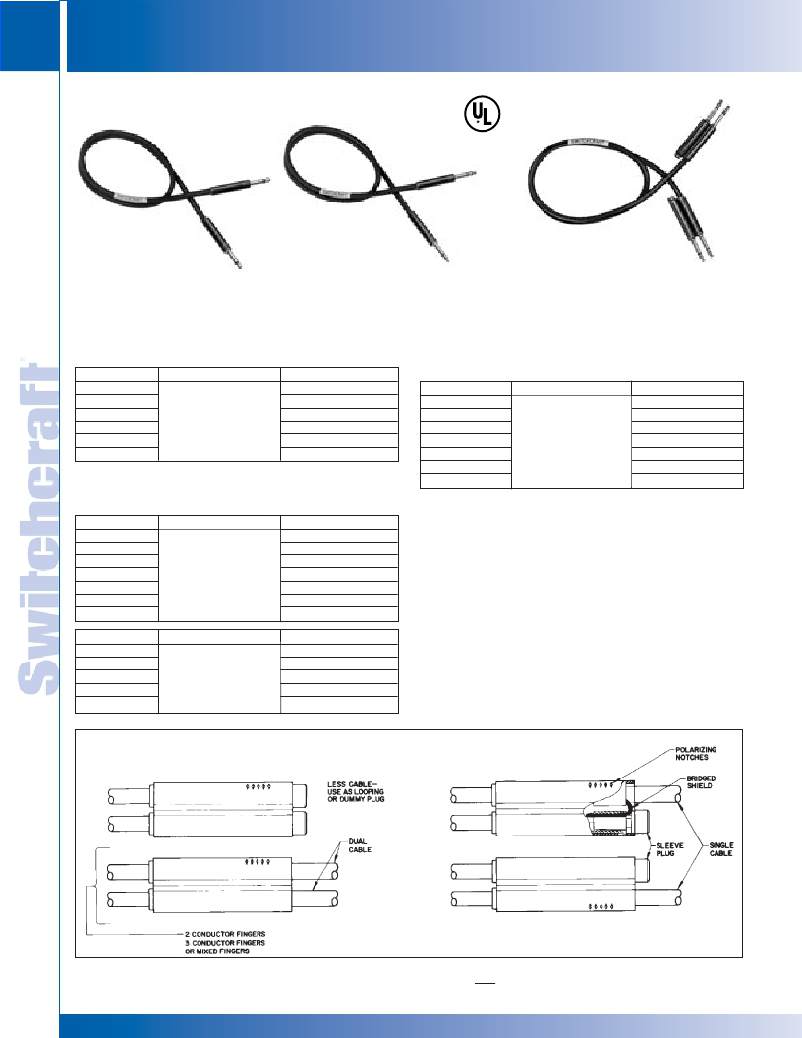

MINIATURE TT ? BRAIDED PATCH CORDS
TT720
Single, 2-Conductor
TT740
Single, 3-Conductor
TT860
Twin, 3-Conductor
CABLE AND PLUG FINGER COMBINATIONS
2-Conductor Patch Cord . Two-conductor Bantam-Type ? plug,
Switchcraft TT251 at each end. Shield (75% coverage) is
grounded to each plug sleeve. Tinsel conductor is wired
tip-to-tip. Standard color: black. Other colors and lengths are
available on special order.
3-Conductor Twin Patch Cords. 5-circuit patch cords use two
3-conductor twin Bantam-Type plugs, Switchcraft TT-263, at
each end. Sleeve circuits are wired common, and tinsel
conductors are wired tip-to-tip and ring-to-ring (see schematic).
Polarizing handle notches indicated plug fingers with
interconnected tip and rings. Standard color: black. Other
Part Number
Description
Length, feet (m)
colors and lengths are available on special order.
? TT722
1 (.305)
Part Number
Description
Length, feet (m)
? TT724
2-conductor single,
2 (.61)
? TT861
0.5 (.152)
? TT727
? TT728
? TT726 brass finish on plug fingers, 3 (.914)
black handle and cord. 4 (1.219)
Identifying label on cord. 5 (1.524)
? TT729 6 (1.829)
3-Conductor Patch Cord. 3-conductor Bantam-Type plug
(Switchcraft TT253) at each end. Wiring is the same as TT724,
? TT862
? TT864
? TT866
? TT867
? TT868
? TT869
3-conductor twin,
brass finish on plug fingers,
black handle and cord.
Identifying label on cord.
1 (.305)
2 (.61)
3 (.914)
4 (1.219)
5 (1.524)
6 (1.829)
except also has ring-to-ring wiring.
1. For brass fingers, substitute “B” for “N” in part number. Special order only.
2. “0” in part number denotes black handle and cord. Substitute the following
Part Number
? TT741
? TT742
? TT744
? TT746
? TT747
? TT748
? TT749
Part Number
? TT741N0
? TT742N0
? TT744N0
? TT746N0
? TT747N0
Description
3-conductor single,
brass finish on plug fingers,
black handle and cord.
Identifying label on cord.
Description1, 2
3-conductor single,
nickel-plated plug fingers
(brass available) black
handles and cord.
Length, feet (m)
0.5 (.152)
1 (.305)
2 (.61)
3 (.914)
4 (1.219)
5 (1.524)
6 (1.829)
Length, feet (m)
0.5 (.152)
1 (.305)
2 (.61)
3 (.914)
4 (1.219)
for “0” to specify other color cords:
2–Red 5–Green 6–Blue
? Special order only; contact Switchcraft for prices and delivery.
CABLE AND PLUG FINGER COMBINATIONS
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
